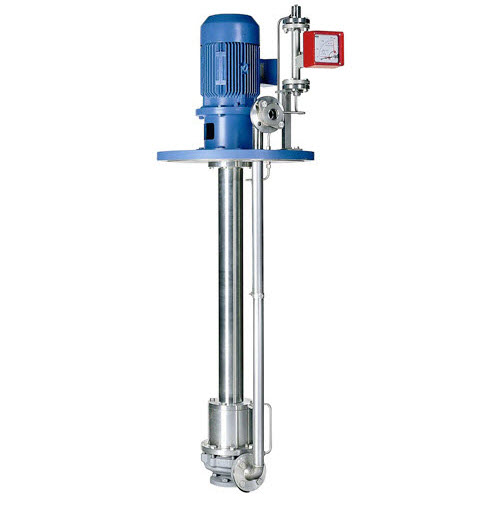

Vertical Submerged Sealless Magnetic Drive Pump
SLM-NVT
Klaus Union's SLM-NVT is a sealless centrifugal vertical submerged pump with permanent magnetic coupling, for tank installations requiring zero leakage.
Operating Parameters
- Flow rates up to 5,500 GPM
- Total delivery heads up to 700 feet
- Temperature ratings from -58 °F (-50 °C) to +302 °F (+150 °C)
- Flange rating per ANSI B16.5 Class 150 and Class 300
Pumping
- Aggressive, explosive and toxic liquids
- Acids & lyes
- Hydrocarbons
- Heat transfer liquids
- Liquid gases
- Difficult-to-seal liquids
- Ultrapure liquids
Applications
- Tank installations
- Chemical and petrochemical industries
- Refineries
- Refrigeration and heat engineering
- Liquid gas plants
- Galvanic engineering
- Pharmaceutical industries
- Fibers industries

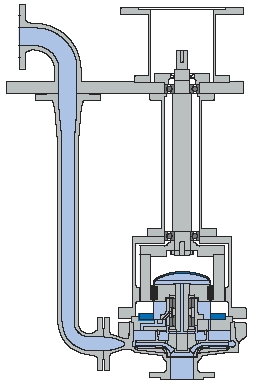

Construction
- Vertical mounted sealless centrifugal pump with dry supporting column
- Separation of liquid chamber/atmosphere by means of an isolation shell
- Permanent magnet drive system, no mechanical seal
- Synchronous drive transmitted by inner and outer magnet systems
- Liquid lubricated internal bearings made of pure, sintered silicon carbide
- Bearings of outer magnet carrier: deep groove ball bearings
Standard Materials
| Pump casing: | 316 SS |
| Impeller: | 316 SS |
| Isolation shell: | 316 SS/Hastelloy C4 |
| Inner magnet carrier: | 316 SS/Hastelloy C4 |
| Internal bearings: |
Silicon carbide, alpha grade |
| Supporting column: | Carbon Steel |
| Magnets: |
Rare earth samarium cobalt |
Materials listed are equivalent to DIN/ISO standards.
Special Alloy
- Hastelloy B
- Hastelloy C
- Alloy 20
- Titanium
Other materials available
Optional Features
- PMP 25 - Power monitor
- TPS - Isolation shell temperature probe
- CDS - Double-wall isolation shell (dual containment)
- Self-cleaning internal & external filter for liquids containing solids
- External flush connection
- Isolation shell materials: Titanium, non-metallic (carbon fiber/PTFE)
- Internal bearing materials: Carbon/SSIC, carbon/stellite
Hydraulic Coverage

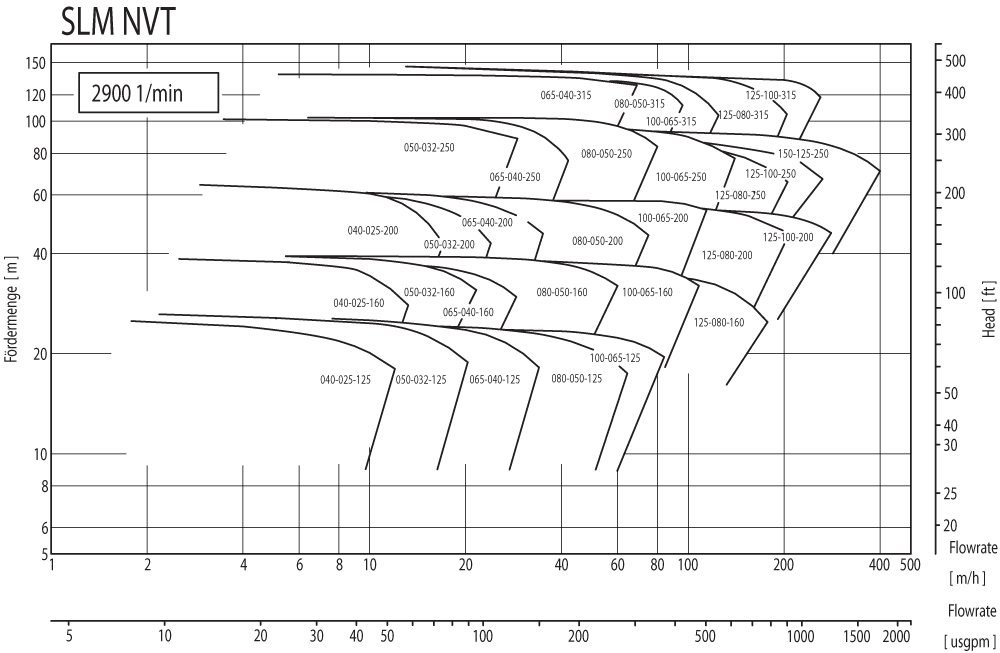

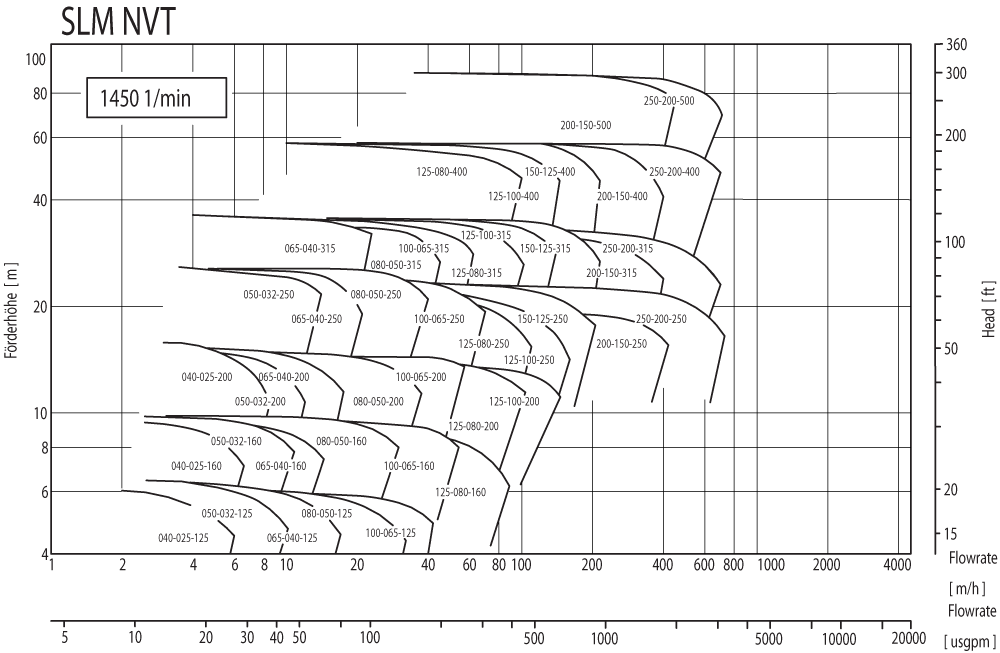

- 50 Hz SLM-NVT Performance Curves Preview 1450 rpm Preview 2900 rpm Download Curves

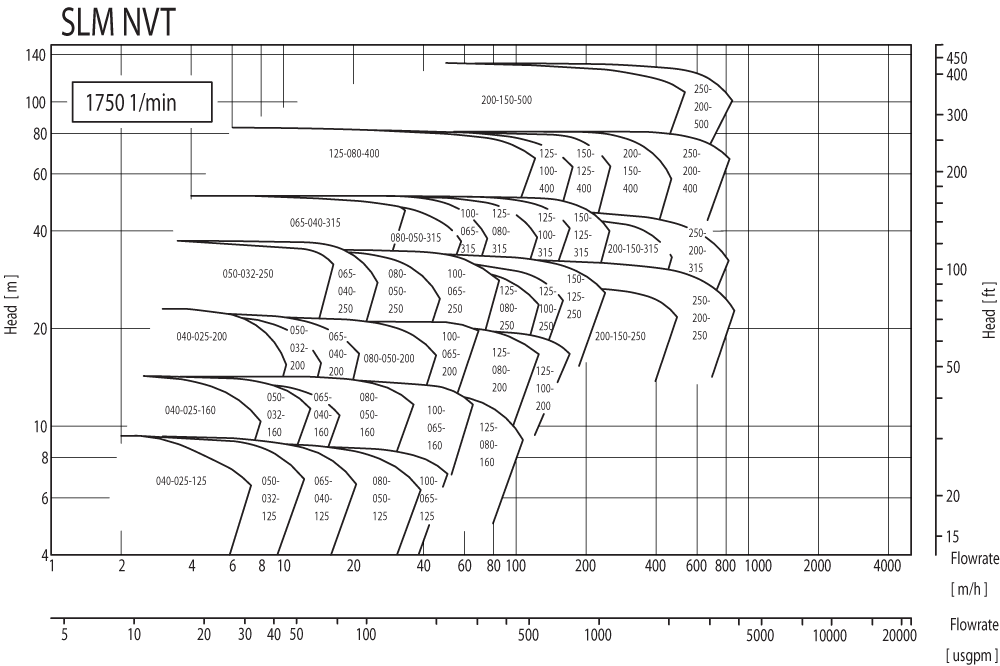

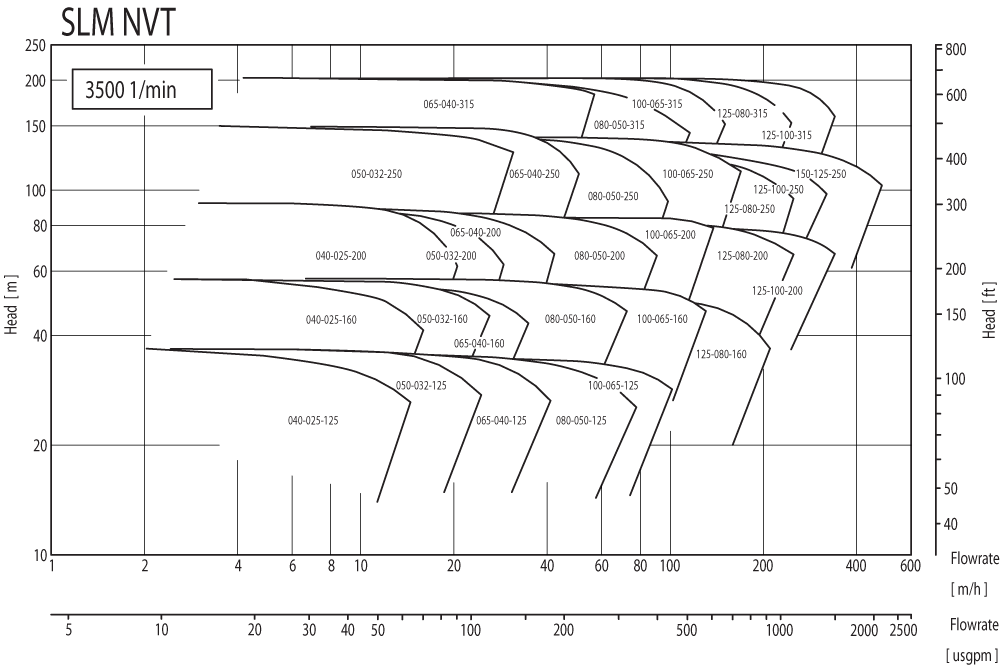

- 60 Hz SLM-NVT Performance Curves Preview 1750 rpm Preview 3500 rpm Download Curves
Specifications are subject to change.
